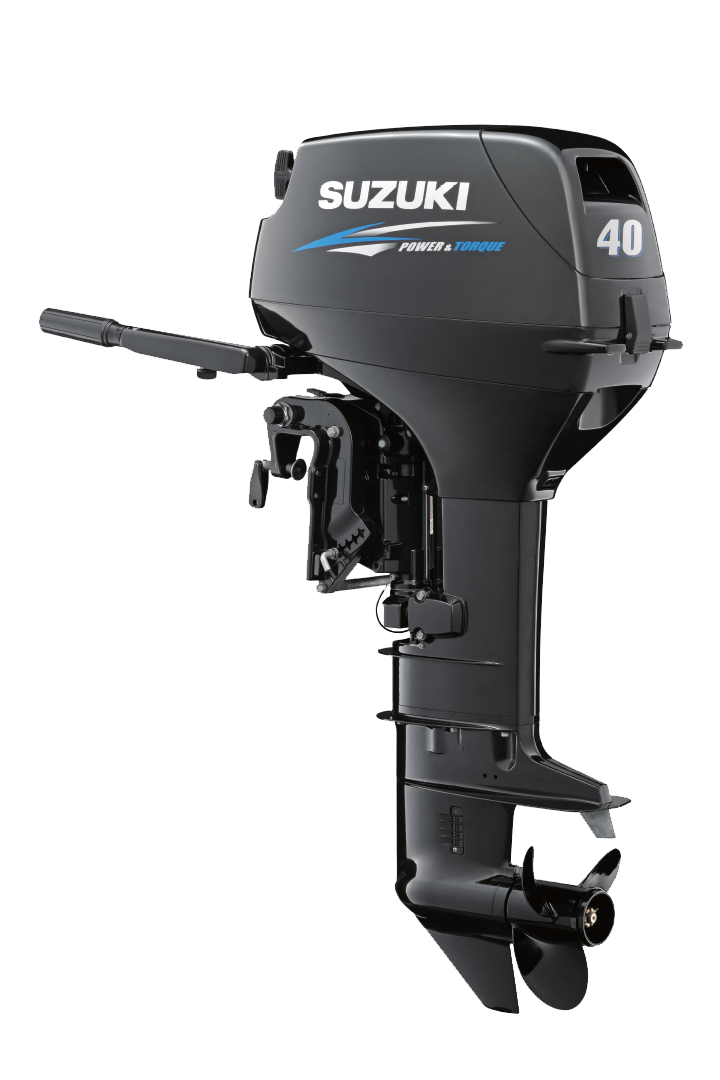

Suzuki DT40WL 2-stroke, Outboard Motor
SPECIFICATIONS
| Bore x stroke | 79 x 71mm |
| Starting system | Electric |
| Maximum output | 29.4kw |
| Full throttle operating range | 5,000 – 5,600rpm |
| Gear shift | F-N-R |
| Displacement | 696cm3 |
| No of cylinders | 2 |
| Oil pan capacity | - |
| Shaft length | L: 508mm |
| Ignition system | Suzuki PEI |
| Trim method | - |
| Exhaust | - |
| Weight | L: 76kg |
| Steering | Remote |
| Gear ratio | 2.09:1 |
| Engine type | 2-stroke 2 Cylinders |
| Engine mounting | - |
| Fuel delivery system | - |
| Propeller selection pitch | 11 –1/2 x 9, 11 –1/2 x 10, 11 –1/2 x 11, 11 –5/8 x12, 11 –1/2 x 13, 11 –3/8 x 14, 11 –1/4 x 15, 11 –1/8 x 16, 11 x 17 |
| Fueloil mixing ratio | 50:01:00 |
| Alternator | 12V 80W (Optional) |
